Safe-T-Punch™ Emergency Window Devices
for Passenger Rail

Safe-T-Punch™ is a fixed, mechanical emergency window glass-breaking device for compatible R43 toughened safety glass. For passenger rail applications, it mounts directly ON the designated emergency-exit window and operates without batteries, electronics or vehicle power.

About Safe-T-Punch™

Safe-T-Punch™ is developed and supplied by PLR Distribution (Pty) Ltd, based in Johannesburg, South Africa. Inventor Ivan le Roux began developing the device in 1991. Our international distribution network serves markets including Southern Africa, the United Kingdom, Europe, Canada, India and New Zealand.

We support rolling stock manufacturers, passenger rail operators and refurbishment specialists evaluating fixed mechanical emergency-window devices for new vehicles and existing fleets.

PLR Distribution operates an ISO 9001:2015 quality management system certified by TÜV Rheinland, covering design, outsourced manufacture, assembly and sales of safety products.

The on glass Emergency Window Egress Device for Passenger Rail

When normal train exits become unusable, passengers need a practical means of opening a designated emergency window. A loose emergency hammer must be present, found, retrieved and used effectively. Reduced visibility and a disrupted carriage interior can make that sequence more difficult.

Passenger Rail Uses and Applications

Where the glazing and emergency-exit arrangement are suitable, Safe-T-Punch™ can be integrated into:

• Passenger-compartment emergency exits — fixed directly on designated emergency windows in passenger coaches and carriages.
• Train-door emergency-exit glazing — for compatible toughened-glass panels specifically designed as escape openings, subject to assessment of the complete door and glazing arrangement.
• Glazed emergency roof hatches — inside and outside — fixed devices on the inside and outside of compatible R43 toughened safety-glass hatches, supporting passenger escape from within and rescue access from outside, subject to assessment of the complete hatch assembly.
• New-build passenger trains — incorporating the device and operating instructions when suitable emergency windows are specified.
• Rolling stock refurbishment and retrofits — adding a fixed mechanical device to suitable existing emergency windows during fleet upgrades.

How Safe-T-Punch™ works

Safe-T-Punch™ fixes the glass-breaking mechanism at the intended point of escape. The passenger removes the safety tag and strikes the operating surface. The device positions the impact tip against the glass, removing the need to retrieve and aim a separate tool. Its mechanical operation is independent of the train’s electrical supply.

Technical Design and Performance

Safe-T-Punch™ integrates the glass-breaking mechanism into the emergency-window assembly. Mounting directly on compatible R43 toughened safety glass fixes the point of impact and positions the carbide tip relative to the pane. For rolling stock designers, this makes the breaking mechanism a defined component of the window specification.

The passenger removes the safety tag and strikes the operating surface. The specified activation energy is 3 J. The user supplies the impact; the device determines where the tip contacts the glass. This reduces dependence on locating a loose hammer, selecting a strike point and controlling a handheld tool’s alignment.

The mechanical design requires no electrical connection, battery, software or vehicle power. Its operation is independent of the train’s lighting and door-control systems, supporting emergency-window access when those systems are unavailable. The removable safety tag provides a deliberate step before activation.

For packaging and integration, the range includes a 50 mm ABS-bodied model and 40 mm aluminium models for single and specialist double glazing. Direct adhesive mounting avoids drilling into the vehicle structure or adding electrical circuits. This supports integration during vehicle manufacture and refurbishment. Photoluminescent instructions identify the operating sequence at the designated exit.

Independent laboratory testing provides measured evidence of the breaking action. In Wintech Report R13893 (2014), the STP40N broke all 42 samples of 4 mm and 5 mm toughened vehicle glass within two impacts under the report’s test conditions.

For R&D and homologation teams, the fixed design allows the device, glazing, frame and instructions to be assessed together in a defined installation. PLR Distribution supplies product specifications, installation guidance and test information to support application development and verification of the complete escape opening.

Glazing compatibility and emergency window specification

Safe-T-Punch™ is designed for compatible R43 toughened safety glass, also known as tempered glass. It is not designed to create an escape opening through laminated glass. Model selection depends on the glass thickness, glazing construction and installation requirements.

Our technical approach considers the complete emergency-window arrangement, including device access, glass fracture, removal of the broken panes and creation of a usable opening.

Support for new rolling stock and retrofit projects

We provide product specifications, installation guidance and test information to help technical teams evaluate the proposed application. Adhesive mounting avoids electrical connections or drilling into the vehicle structure. Photoluminescent pictogram instructions explain the operating sequence and support visibility in darkness after sufficient exposure to light.

Rail Case Study at Rail Coach Factory Kapurthala

In 2025, Safe-T-Punch™ was demonstrated at Rail Coach Factory (RCF), Kapurthala, India. Ravi Kumar, Principal Chief Mechanical Engineer, personally operated the device and broke the emergency glass.

Safe-T-Punch™ is approved for use in LHB passenger coaches. The demonstration showed railway engineering personnel the device’s mechanical glass-breaking action.

Key Safe-T-Punch™ Emergency Window Products

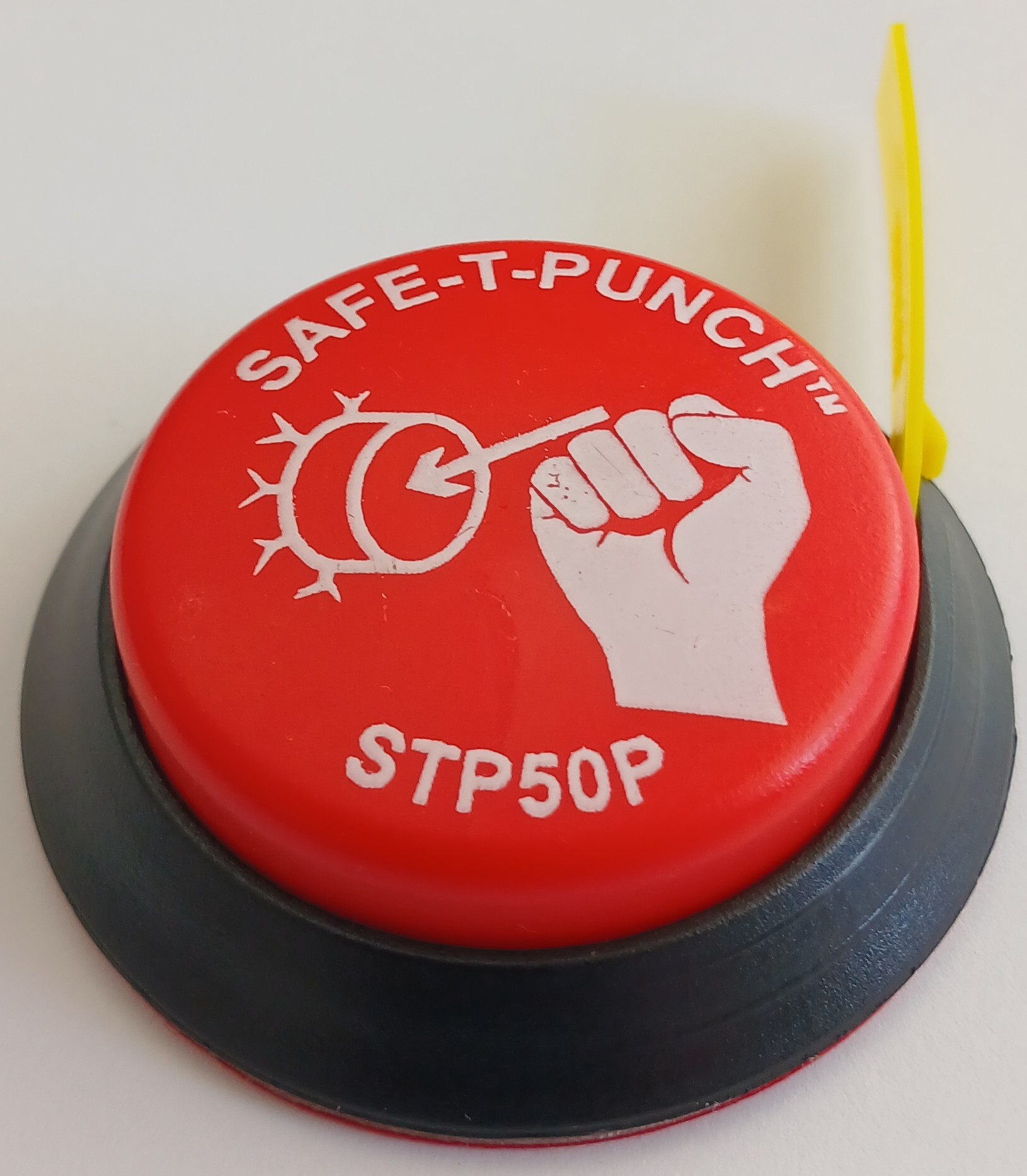

STP50P Emergency Window Device

A 50 mm diameter ABS-bodied device for compatible toughened-glass emergency windows in passenger transport applications.

STP40N Aluminium Glass-Breaking Device

A 40 mm diameter aluminium device for single-glazing applications using compatible 3–12 mm toughened safety glass.

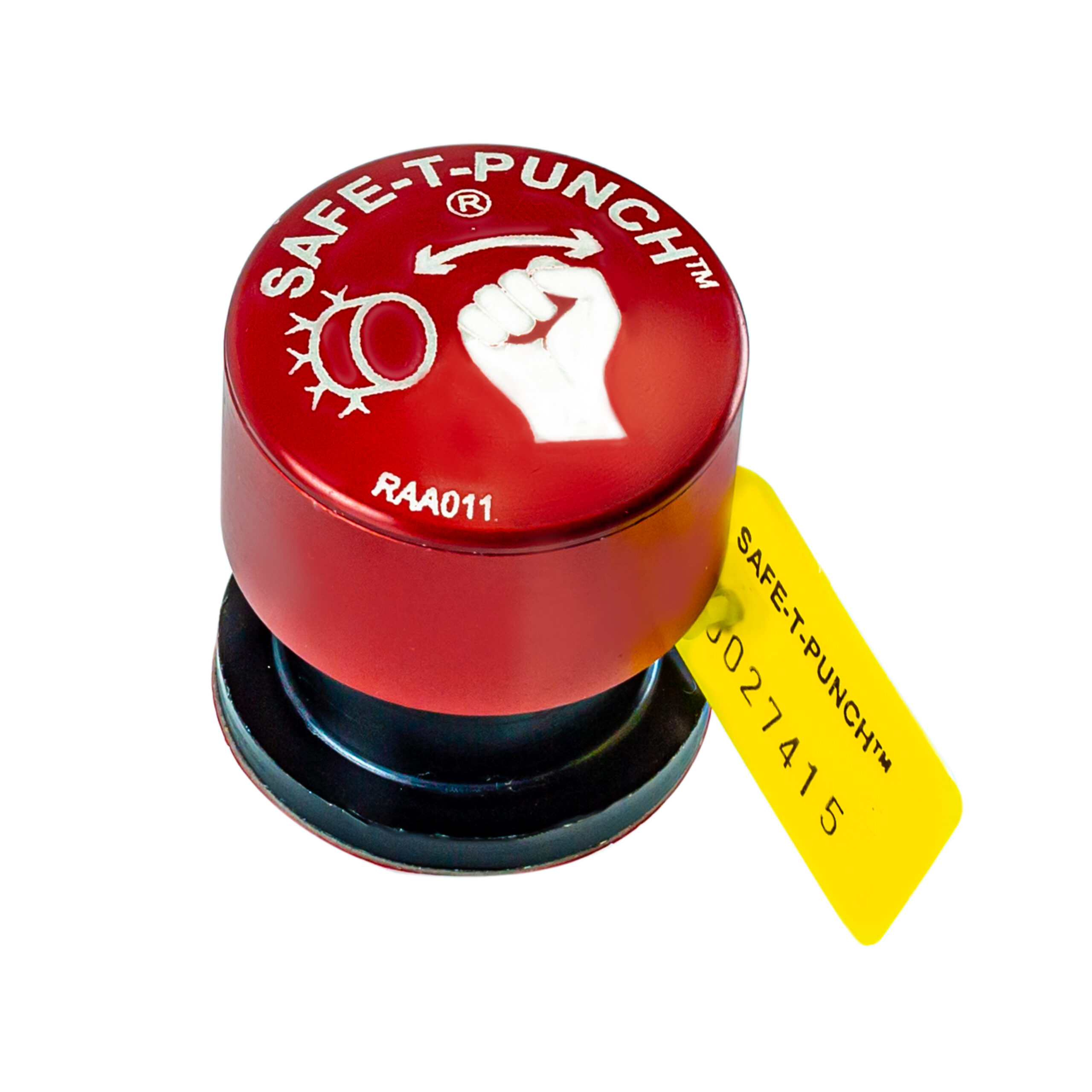

STP40D Specialist Double-Glazing Device

A heavy-duty, 40 mm diameter aluminium device for specialist double-glazing and retrofit applications. Selection and installation must follow the model-specific requirements for the glazing arrangement.

IDSS Photoluminescent Instruction Sticker

A Grade C photoluminescent instruction sticker with three-step pictograms. It reduces reliance on written language and supports visibility in darkness after sufficient exposure to light.

Discuss your passenger rail project. Contact Safe-T-Punch™ to request a technical information pack, discuss your glazing configuration or arrange a demonstration.

Safe-T-Punch™ — Fixed. Ready. Certain.
