Standard and Customised Power Supplies for Railway Applications

MTM Power is a leading solutions provider of power supplies for railway applications, delivering innovative products with a flexible and reliable core business structure. MTM Power delivers a variety of EN 50 155 compliant DC/DC converters devised for vehicle and railway applications. As well as rail converters, MTM’s portfolio includes DC/AC inverters, filters and multi-power supply systems, as well as AC/DC modules with alternative applications.

All of MTM Power’s portfolio of products satisfies relevant standards and applicable VDE/EN/UL regulations. MTM’s one of a kind unique thermo-selective vacuum encapsulation (EP 1987708, U.S. Patent No. 8,821,778 B2) and thorough testing and examinations ensure the quality and reliability of its products.

Power Solutions for On-board, Trackside, Infrastructure and Signalling for Railways

MTM Power offer optimised power solutions for on-board, trackside, infrastructure and signalling for railways. MTM Power’s portfolio of power supplies for railway applications includes:

  • DC/DC Converters (14 –  400 W)
  • Multi-Power Supply Systems (500 W – 2,000 W)
  • High-Voltage Converters (250 W)
  • DC/DC Converters with Ultra- Wide Input Range (50 W, 75 W)
  • Sine Wave Inverters (750 VA – 3,000 VA)
  • IP67 AC/DC Modules (50 W – 200 W)
  • AC/DC Power Supplies (5 – 100 W)
  • Battery Chargers

With Products to Service Applications Including:

  • Train Control and Traction Technology
  • Door Controls
  • Train Lighting
  • Braking Systems
  • Signalling
  • Windscreen Wiper Engines
  • Passenger Counting and Information Systems
  • Electronic Displays
  • European Train Control System ETCS
  • On-Board-Ticketing
  • Points Control
  • Sander
  • Seat Heatings
  • Self Starting Modul for Trams

Our Products Comply Standard Railway Requirements such as:

  • EN 50 155 [Electrical Safety]
  • EN 50 121-3-2 [EMI/RFI]
  • EN 45 545-2 [Fire PROTECTION]
  • EN 61 373 [Shock and Vibration]
  • EN 61 000-4-2 [ESD]
  • EN 61 000-4-3 [HF-Feld]
  • EN 61 000-4-4 [Burst]
  • EN 61 000-4-5 [Surge]

DC/DC Converters for Railway Applications

The series PMGS/PCMGS14 DC/DC converters for railway applications comes with a nominal input voltage of 72 VDC or 110 VDC as standard, but may be provided with an output voltage of of 24 VDC 12 VDC and 48 VDC. The converters feature an input reverse polarity protection by a series diode and are continuous short circuit protected. They operate in most temperatures, from –25 to +70 °C. The EN 50 155, class T3 feature high efficiency of ≥90 % and an isolation voltage of 1.5 kVAC. They met safety standards acc. to EN 50 155, EN 50 124-1 and meet EMC regulations to EN 50 123-1. The converters may tolerate supply voltage interruptions of up to 10 ms, making them class S2 acc. to EN 50 155 compliant.

The converters are suitable for print (PMGS), chassis mounting (PCMGS) of DIN rail mounting. The dimensions of the devices are from 76,0 x 50,7 x 22,7 mm (PMGS) to 110,0 x 50,8 x 23,0 mm (PCMGS). MTM’s vacuum encapsulated (EP 1 987 708, U.S. Patent No. 8,821,778 B2) converters require no maintenance and are designed for use in devices with Protection Class II. They demonstrate a mechanically and electrically hardy design featuring SMD technology.

PCMDS Series Converters for Railway Applications

MTM’s DC/DC PCMDS series converters are designed for vehicle and rail technology, as well as industrial and telecommunications sectors. The converters are available with three wide input ranges in order to handle battery voltages of 24 V, 36 V, 48 V, 60 V, 72 V, 80 V, 96 V and 110 V acc. EN 50 155. There are also 30 W, 60 W, 80 W and 150 W output power available, with galvanically isolated output voltages of 5 V – 48 V. The converters are connected by spring clamps to meet the stringent requirements of railway application. The thermoselective vacuum encapsulation guarantees homogeneous heat dissipation in addition to high resistance to environmental factors including shock, vibration and humidity. The converters do not require ground load. They are protected from short-circuiting by primary and secondary power limiting and reverse polarity protection by active input current limiting.

High Voltage Converters for Railway Applications

The 250 W HVC series high voltage converters for railway applications have an input range of 400 to 975 VDC and standard output range of 24 VDC and 36 VDC. The highly efficient system (>88%) is also ergonomically designed and compact, (330 x 170 x 87 mm) in order to operate in locations lacking forced ventilation. These converters operate at temperatures between -40 to +85 °C acc. to EN 50 155. These converters supply equipment out of V / 750 V contact wire, making them idea to supply points, signal lamps and electronic monitoring of the rail network. The products are used in Linz as in electronic security devices at level crossings. The self-starting module on the HVC series is ideal for trams and trolley buses to avoid last-mile towing. The design of all of MTM’s devices guarantees its operation in difficult environmental conditions.

Active Transient Filters

MTM’s active transient filters (ATF) are designed to suppress energy-rich transients from mains, as specified by British standard RIA12. These front-end filters are to be used with MTM Power DC/DC converters series. Their vacuum encapsulated active filter modules with an aluminum base plate and connector (either screw connector or spring clamp) are hardwearing and protected against short-circuiting in the lifeline.

Read more

MTM Power® Messtechnik Mellenbach GmbH News

DC/DC Converters PCMDS150 for Rolling Stock Applications

DC/DC Converters PCMDS150 for Rolling Stock Applications

The DC/DC converters series PCMDS150 from MTM Power® are specially designed for supplying closed sub-systems in rolling stock applications.

150 W Power Supplies for Use in Industrial and Railway Applications

150 W Power Supplies for Use in Industrial and Railway Applicatio...

The AC/DC modules of the series PCMAT150 S24 from MTM Power® are suitable as a decentralised power supply for railway applications.

MTM Power  Keeps You on Track Even in Times of Crisis

MTM Power Keeps You on Track Even in Times of Crisis

Railway technology involves long-lasting capital goods. Unaffected by the corona pandemic, MTM Power is currently working on ongoing projects.

DC/DC Converters with Protection Degree IP65 for Railway Applications

DC/DC Converters with Protection Degree IP65 for Railway Applicat...

The primary-switched DC/DC converters PCMDS150WK-IP65 from MTM Power are specially designed for applications in vehicle and rail technology.

MTM Power to Present New 400W DC/DC Converters at InnoTrans 2018

MTM Power to Present New 400W DC/DC Converters at InnoTrans 2018

For years, MTM Power®'s series PCMD400 has been a well-proven converter series, especially designed for applications in vehicle and railway technology as well ...

DIN Rail Module HSA50 for Rough Environmental Conditions

DIN Rail Module HSA50 for Rough Environmental Conditions

The MTM Power DIN rail module HSA50 has been designed as a universal compact power supply with AC- (90…264 VAC) and DC (120…340 VDC) wide input range for th...

MTM Power® Messtechnik Mellenbach GmbH Videos

MTM Power® Messtechnik Mellenbach GmbH Images

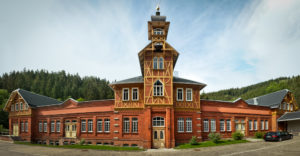

MTM Power Administrative Building
