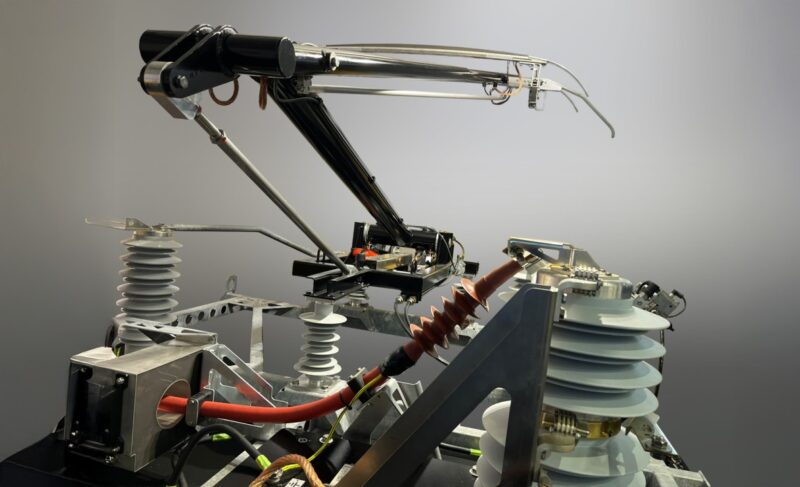

Whether raising and lowering pantographs or switching main circuits in overhead contact line systems: reliable protection and control components are essential for safe railway operations. Proven relay solutions for the precise control of pneumatic drives and the rapid monitoring of operating currents offer new possibilities for further increasing availability, diagnostic capability, and operational safety in railway vehicles and infrastructure applications.

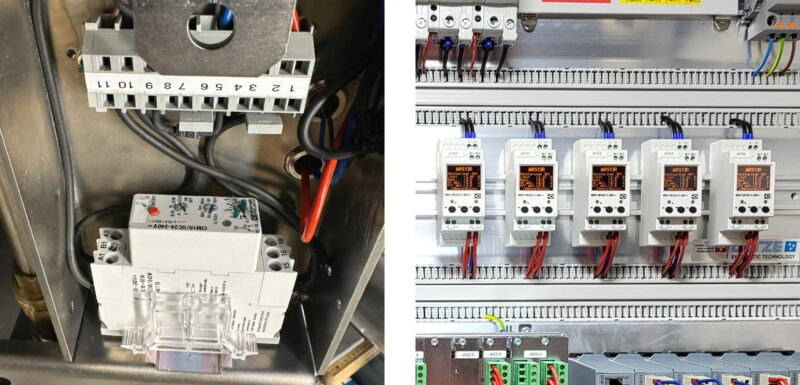

A typical application is the control of pneumatically actuated vacuum main switches, such as those used in overhead contact line and pantograph systems. Here, the CIM1R time relay ensures precise timing control of the pneumatic drive. After switching on, the actuator is pressurized in a controlled manner and then vented after a defined delay. This supports reproducible switching sequences, high repeatability, and a long service life for the system.
Equally crucial is the reliable detection of electrical faults. In combination with current transformers, the MRS13R overcurrent protection relay continuously monitors operating currents and protects systems from overload and short-circuit events. Thanks to a response time of less than 20 ms, faults can be detected early and affected system components can be quickly shut down.
Other features of the MRS13R:
- Power supply AC/DC 12–48 V
- Simple parameterization via three buttons with display indicator
- LED status indicators for a quick system overview
- Integrated diagnostic input for functional tests without actual overcurrent
- Network failure-proof storage of all settings
- Compact design (35 mm) and DIN rail mounting according to IEC EN 60715
Of particular note is the use of positively guided contacts according to IEC 61810-3. These ensure clearly defined and reliably identifiable switching states, even in the event of a fault. This enables precise feedback to higher-level control systems, simplifies diagnostics, and increases the availability of the overall system.
The combination of intelligent time control and rapid current monitoring demonstrates how modern relay technology supports the further development of railway vehicles and infrastructure. The result is robust, low-maintenance solutions for applications where safety, reliability, and long-term availability are paramount.
