Safety Critical Systems for the Railway Industry

ClearSy is an expert in safety critical systems for the railway industry. From design to commissioning, ClearSy develops and installs certified vital software and systems for trains, metros, commuter trains, light rails and rail infrastructures worldwide. In their effort to provide fully turn-key systems, ClearSy engineers pass SIL certification for their clients before delivery (according to standards EN 50126, EN 50128, EN 50129, 61508).

As a leading expert in rail safety, ClearSy proposes products and consulting to ensure safety, availability of rail systems and reduce cost of safety development.

ClearSy has been established to promote formal B method for industrial applications since 2001. Today, it is a reference in the field and now proposes development and support in a formal method (based on mathematical proofs).

ClearSy’s products and services are designed to address 4 issues of current transportation authority:

Station Safety Systems

ClearSy offers a range of products to increase flow and safety of passenger in urban transportation systems. Its systems are in operation in Paris, Stockholm, Sao Paulo, Los Teques, Lyon and Bordeaux … These systems are designed to combine safety and availability in order to fully address the needs of the most crowded public transportation network.

To ensure station safety, ClearSy offers:

  • Platform screen doors / Automatic platform gates controller: these systems prevent ingression into the track and increase fluidity. Their solutions are suitable for existing and new trains.
  • Track intrusion detection system: it detects human ingression into the track.
  • Positioning system: it ensures correct stopping position of the train before train doors opening.
  • Gap filler: it fills the gap between train and platform and detects person in the gap between platform gates and train doors.
  • Level boarding, Bridge plate: they ease ingress and egress of passengers.

Train Operation Safety

To ensure safety during train operation, ClearSy proposes signaling systems and monitoring devices to prevent critical accidents:

  • Automatic train stop (ATS) and automatic train operation (ATO): these systems are automatic train braking systems use to prevent overrun of restricted signal and overspeed. They are in operation in RATP lines in Paris, Santiago, Baku ….
  • Train detection / train location: It is used to detect passage of a train.
  • Axle counter: it is an alternative to track circuit and is less affected by environment.
  • Level crossing safety.
  • Flat tire monitor, Hot box and dragging equipment detector.
  • Master monitoring system, high performance SCADA especially designed for railway operation.

Cost Reducing Critical Software for Rail

ClearSy has developed cheaper alternative products for vital application. They are also committed to reduce cost of critical software and system development.

  • Vital SIL4 certified relays: these relays are guaranteed to open and they don’t use gravity. Consequently, they are very compact. These safety relays fit onboard and trackside application.
  • Fail safe remote I/O: it brings command closer to actuators and reduces wiring for onboard and trackside application. System can handle different safety level system on the same network.
  • LCHIP: It is a hardware/software platform (PLC) for SIL4 application. It eases critical software development and reduces drastically their cost. Currently in research and development.

Rail Safety Engineering Consultants

ClearSy has acquired a strong expertise in advanced rail safety and now it offers services.

Safety engineering:

  • Safety demonstration
  • Elaboration of safety cases
  • Critical system study

In safety, B formal method is a strong asset. For example, ClearSy proved the CBTC of the NYCT line 7 is totally safe at system level. Also, B method is used to design safety critical software of CBTC driverless by major companies.

When it comes to train management system, ClearSy engineers have already assisted clients in their ERTMS and CBTC projects by developing interlocking or writing specifications.

  • Technical advice about ERTMS/ETCS/CBTC matters
  • Development of EVC
  • Development of RBC
  • Development of interlocking
  • Development of BTM
  • Development of train integrity device
  • Any specific development of a system based on software/hardware

ClearSy provides training in B Method and for ERTMS/ETCS.

Read more

ClearSy Systems Engineering Images

platform automatic train doors

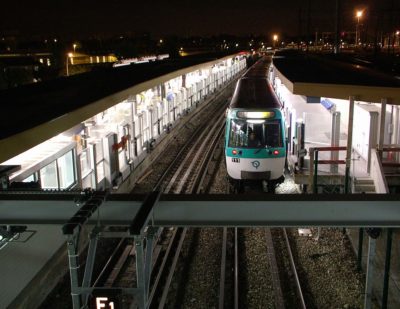

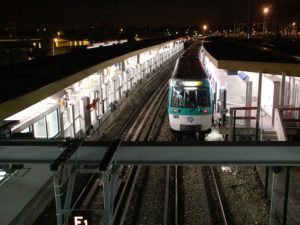

Platform edge doors in Paris metro line 13: ClearSy designed the platform doors control system

Clearsy Axle Counting System

The advantages of an axle counting system over track circuits

Track Intrusion Detection System

Track intrusion detection system: Laser based technology to detect ingression into the track

SATURN Remote IO Safety System

SATURN Remote IO: Safety remote IO

Gamme RS4 Vital relay Safety critical system

RS4 relays: vital relays suitable for onboard and wayside application

Train Location Wheel Sensor

Wheel sensors: train detection. Alternative to track circuits

ATS-ATO Automatic Train Stop

KFSV and KPVA: ATS and ATO system. In service in Paris metro
