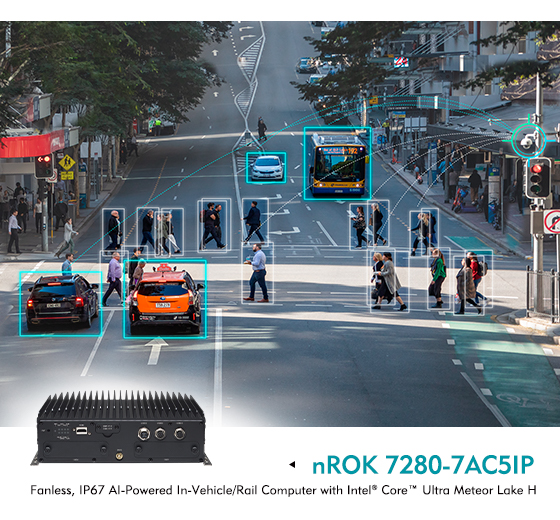

The nROK 7280-7AC5IP, a cutting-edge rugged computer, is designed to power the next generation of AI-enabled traffic safety solutions.
This powerful system leverages the latest Intel Core Ultra Meteor Lake H series processor, delivering exceptional performance and robust reliability in demanding outdoor environments.
The nROK 7280-7AC5IP is engineered to meet the critical demands of modern transportation infrastructure, enabling advanced applications such as real-time traffic monitoring, incident detection, and pedestrian safety systems. Its robust design and powerful AI capabilities make it the ideal solution for enhancing road safety and optimizing traffic flow.
Unmatched AI Performance
Powered by the Intel Core Ultra Meteor Lake H series processor, the nROK 7280-7AC5IP delivers up to 26 TOPS of AI computing power, providing 30% more CPU performance than its predecessor. This allows for rapid processing of complex AI algorithms, enabling real-time analysis of traffic data for immediate safety responses.
Extreme Ruggedness and Reliability
Built to withstand harsh environmental conditions, the nROK 7280-7AC5IP is IP67-rated, operates in a wide temperature range of -40°C to 60°C, and meets MIL-STD-810H military standards for vibration and shock. It is also certified by CE/FCC Class A, UKCA, E-mark, EN 50155, and EN 45545-2, ensuring compliance with stringent industry regulations.
Comprehensive Connectivity and Expandability
The nROK 7280-7AC5IP offers a diverse range of I/O ports, including:
- 5 x 2.5GbE M12 X-coded PoE++ ports for high-bandwidth data transmission
- Multiple waterproof USB 3.2/2.0 ports
- 2 isolated CAN FD
- 4 serial ports
- 1 x HDMI display port
With 2.5” NVMe SSD support, 4 extension slots, and a wide-range 9~36VDC/24V rail power input with isolation and IGN control, the system provides unparalleled flexibility and scalability for various traffic safety applications.
Main Features
- Powered by Intel Core Ultra Meteor Lake H, up to 26 TOPS AI computing power
- Fanless, IP67 rated and rugged design
- 5 x 2.5GbE M12 X-coded, up to PoE++ (IEEE 802.3bt) support
- Supports 100/1000Base-T1 Automotive Ethernet (optional)
- Expandable to 2x WWAN and 2x WLAN for enhanced mobile router performance
- 2 x 2.5” SSD, 1 x NVMe SSD (PCIe 4.0 x4) for data integrity
- 9~36V DC-IN / 24V Rail with ignition control & OCP/OVP
- Wide range operating temperature of -40°C ~ 60°C
- MIL-STD Military standard for anti-vibration/shock
- CE/FCC, UKCA, E-mark, EN 50155, and EN 45545-2 certified
Ordering Information
nROK 7280-7AC5IP (P/N: 10A00728001X0)
Intel Meteor Lake H (155H), IP67 rated, 5 x 2.5GbE PoE++, 1 x USB 3.2, 4 x USB 2.0, 4 x Serial, 2 x 2.5” SSD, 4DI/4DO, 2 x CAN FD, 9~36V DC / 24V Rail, IGN control
